Well-designed China Tractor Tow Behind Compost Windrow Turner Machine

Short Description:

M3800 is large self-propelled compost making machine in China, whose working width is up to 4.3m, and working height is 1.7m. Its main structure is made by very thick steel plate, which provides Tagrm’s compost matrix stirring machine a strong, stable, tiny body, and advantages of corrosion resistance and flexible turning.

Model: M3800

Lead Time: 30 Days

Type: Self-propelled

Working Width : 3800~4300mm

Working Height: 1700mm

Working Capacity: 1500m³/h

Send email to us

Product Detail

Product Tags

We’re experienced manufacturer. Wining the majority in the crucial certifications of its market for Well-designed China Tractor Tow Behind Compost Windrow Turner Machine, Please sense no cost to speak to us anytime. We are going to reply you when we receive your inquiries. Remember to note that samples are available before we start our business enterprise.
We’re experienced manufacturer. Wining the majority in the crucial certifications of its market for China Tractor Windrow Turner, Tractor Compost Turner, Our mission is to deliver consistently superior value to our customers and their clients. This commitment permeates everything we do, driving us to continuously develop and improve our goods and the processes to fulfill your needs.

Product parameter

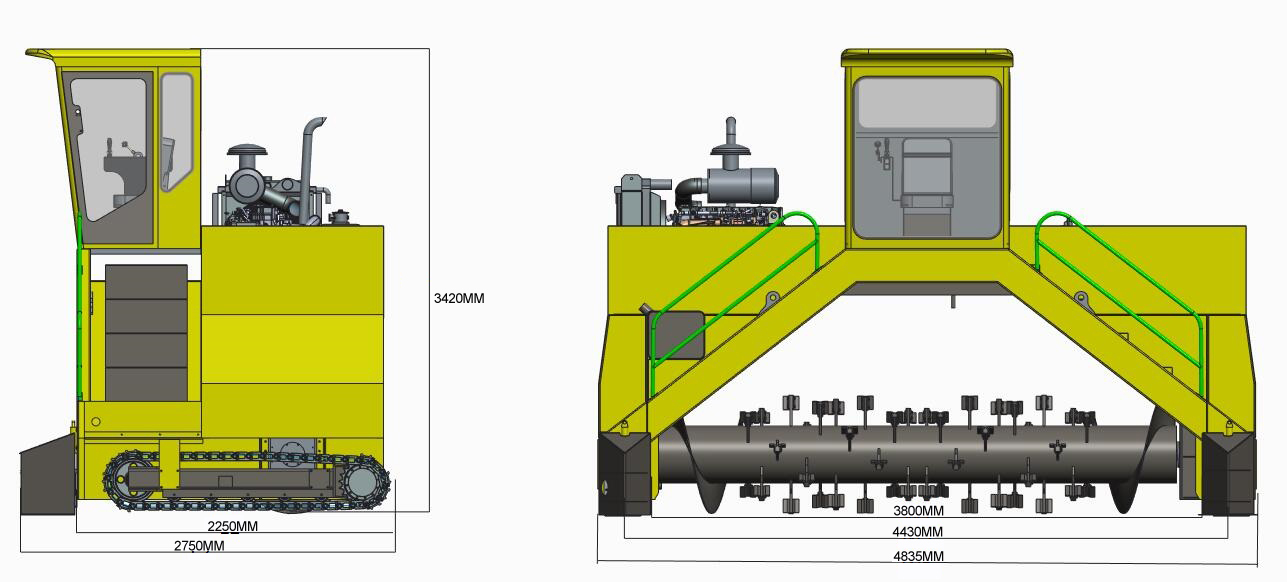

Model	M3800		Ground clearance	120mm	H2
Rate Power	132KW（180PS）		Ground pressure	0.55Kg/cm²
Rate speed	2200 r/min		Working width	3800~4300mm	Max.
Fuel consumption	≤235g/KW·h		Working height	1700mm	Max.
Battery	24V	2×12V	Pile shape	Triangle	42°
fuel capacity	200L		Forward speed	L: 0-8m/min H: 0-21m/min
Crawler tread	4430mm	W2	Rear speed	L: 0-8m/min H:0-21m/min
Crawler size	300mm	Steel with shoe	Feed port width	3800
Oversize	4835×2750×3420 mm	W3×L1×H1	Turning radius	2700mm	min
Weight	6000kg	Without fuel	Drive mode	Hydraulic control
Diameter of roller	876mm	With knife	Working capacity	1500m³/h	Max.

Video

Details Images

M48 and above
