OEM Factory for China Manufacturer! ! Livestock Machinery Organic Composting Turner/Fertilizer Mixer/Compost Making Machine/Windrow Turner/Waste Process Turner Driven by Tractor

Short Description:

TAGRM M2000 is a small self-propelled organic compost turner, all steel frame structure, equipped with 33 horsepower diesel engine, efficient and durable hydraulic transmission system, hardened rubber tires, the maximum working width of 2 meters, the maximum working height of 0.8 meters, can also be equipped with spraying system of fermentative liquid(300L liquid tank).The M2000 can effectively process low-humidity organic materials such as organic domestic waste, straw, grass ash, animal manure, etc. It is especially suitable for small composting plants or farms for personal use. Ideal equipment for conversion to bio-organic compost.


  • Model: M2000
  • Lead Time: 15 Days
  • Type: Self-propelled
  • Working Width : 2000mm
  • Working Height: 800mm
  • Working Capacity: 430m³/h
  • Product Detail

    Product Tags

    We constantly continually give you essentially the most conscientious client provider, plus the widest variety of designs and styles with finest materials. These initiatives include the availability of customized designs with speed and dispatch for OEM Factory for China Manufacturer! ! Livestock Machinery Organic Composting Turner/Fertilizer Mixer/Compost Making Machine/Windrow Turner/Waste Process Turner Driven by Tractor, With a wide range, good quality, reasonable prices and stylish designs,Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.
    We constantly continually give you essentially the most conscientious client provider, plus the widest variety of designs and styles with finest materials. These initiatives include the availability of customized designs with speed and dispatch for China Organic Compost Machine, Fermentation Tank, You can let us know your idea to develop unique design for your own model to prevent too much similar parts in the market! We will offer our best service to satisfy all your needs! Please contact us right away!

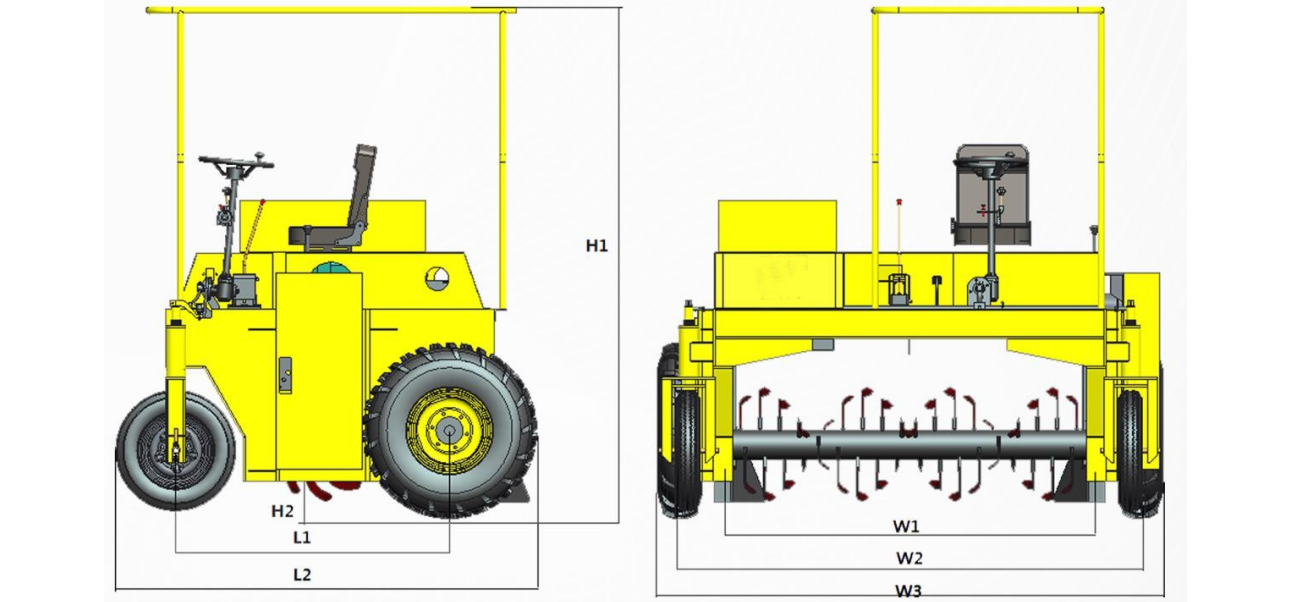

    Product parameter

    Model M2000 windrow turner Ground clearance 130mm H2
    Rate Power 24.05KW(33PS) Ground pressure 0.46Kg/cm²
    Rate speed 2200r/min Working width 2000mm W1
    Fuel consumption ≤235g/KW·h Working height 800mm Max.
    Battery 24V 2×12V Pile shape Triangle 45°
    Fuel capacity 40L Forward speed L: 0-8m/min H: 0-40m/min
    Wheel tread 2350mm W2 Rear speed L: 0-8m/min H:0-40m/min
    Wheel base 1400mm L1 Turning radius 2450mm min
    Oversize 2600×2140×2600mm W3×L2×H1 Diameter of roller 580mm With knife
    Weight 1500kg Without fuel Working capacity 430m³/h Max.

    agricultural waste

    Reference raw organic material:

    Shredded coconut shell, straw, straw, weeds, palm filament,  fruit and vegetable peels,  coffee grounds, fresh leaves, Stale bread, mashroom, pig manure, cow manure, sheep manure, try not to add meat and dairy products. In order to prevent the loss of nitrogen during the decomposition process of compost, highly absorbent substances, such as peat, clay, pond mud, gypsum, superphosphate, phosphate rock powder and other nitrogen-retaining agents, should be added when composting.



    Video

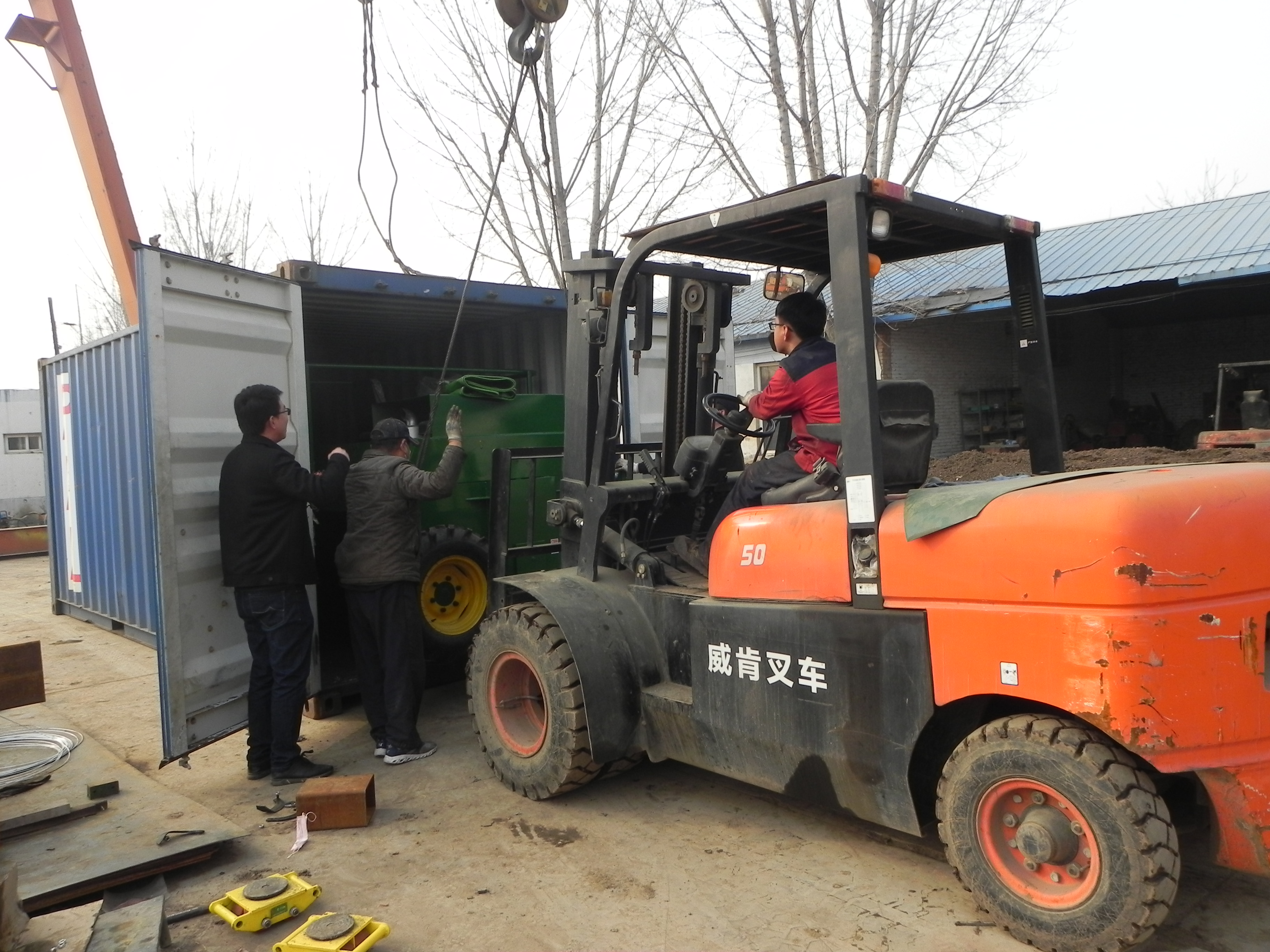

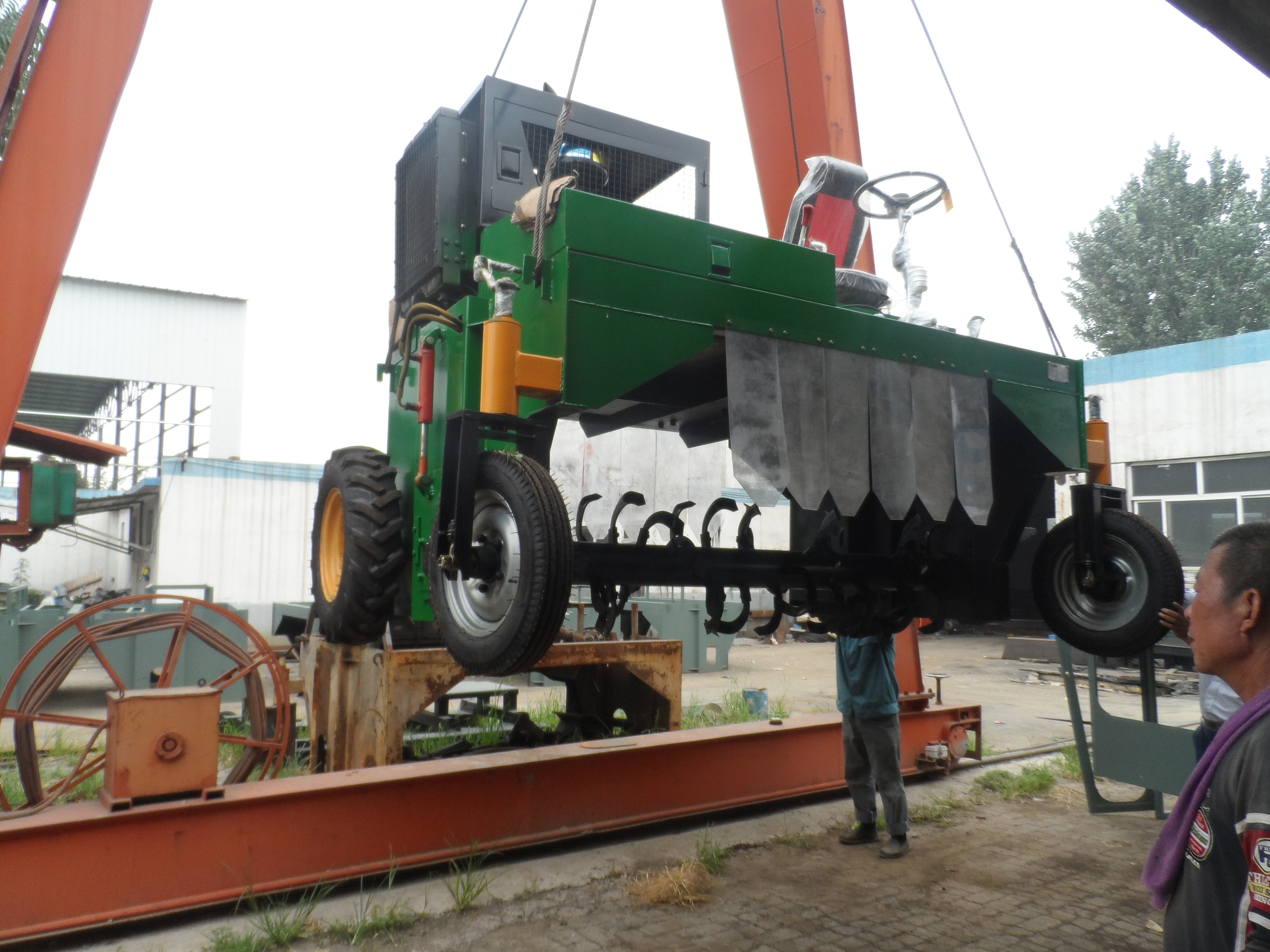

    Packing and shipping

    2 sets of M2000 compost turner can be loaded in a 20 HQ. The main part of the compost machine will be packed in nude, the rest parts will be packed in box or plastic protect. If you have any special requirements for packing, we will pack as your request.

    ”"

    ”"

    ”"

    The process of making compost:

    1. Livestock and poultry manure and other materials, organic domestic waste, sludge, etc. are used as fertilizer base materials, pay attention to the carbon-nitrogen ratio (C/N): Since composting materials have different C/N ratios, we need to use The C/N ratio is controlled at the 25~35 that the microorganism likes and the fermentation can proceed smoothly. The C/N ratio of the finished compost is usually 15~25.

    2. After the C/N ratio is adjusted, it can be mixed and stacked. The trick at this point is to adjust the overall moisture content of the compost to 50-60% before starting. If the water content of livestock and poultry manure and other materials, domestic garbage, sludge, etc. is too high, you can add organic matter, relatively dry auxiliary materials that can absorb water, or use the method of backflow to put the dry fertilizer below to form strips, and put the containing Livestock and poultry manure and other materials, domestic garbage, sludge, etc. with a large amount of water are placed in the middle so that the water above can seep to the bottom and then be turned over.

    3. Stack the base material in strips on a flat surface. The stack width and height should be equal to the working width and height of the equipment as much as possible, and the specific length needs to be calculated. TAGRM’s turners are equipped with integral hydraulic lifting and drum hydraulic lifting technology, which can adjust themselves to the maximum size of the stack.

    4. Sprinkle the fertilizer base materials such as the piled livestock and poultry manure and other materials, domestic garbage, sludge, etc. with biological fermentation inoculants.

    5. Use a turning machine to evenly mix the straw, livestock and poultry manure and other organic materials, domestic garbage, sludge, (water content should be 50%-60%), fermentation bacteria agent, etc., and it can be deodorized in 3-5 hours. , 16 hours to heat up to 50 degrees (about 122 degrees Fahrenheit), when the temperature reaches 55 degrees (about 131 degrees Fahrenheit), turn the heap again to add oxygen, and then start stirring whenever the temperature of the material reaches 55 degrees to achieve uniform fermentation, The effect of increasing oxygen and cooling, and then repeat this process until it is completely decomposed.

    6. The general fertilization process takes 7-10 days. Due to different climates in different places, it may take 10-15 days for the material to be completely decomposed. high, potassium content increased. Powdered organic fertilizer is made.

    Compost turning operation:

    1. It can be controlled by both temperature and smell. If the temperature is higher than 70°C (about 158 degrees Fahrenheit), it should be turned over, and if you smell the smell of anaerobic ammonia, it should be turned over.

    2. When turning the pile, the inner material should be turned outward, the outer material should be turned inside, the upper material should be turned downward, and the lower material should be turned upward. This ensures that the material is fully and evenly fermented.
