New Delivery for Windrow Composting Machine - M2600 Organic Waste Compost turner – TAGRM Detail:

Product parameter



Model M2600 Ground clearance 130mm
Rate Power 68KW Ground pressure 0.46Kg/cm2
Rate speed 2200r/min Working width 2600mm Max.
Fuel consumption <235g/KW-h Working height 1200mm Max.
Battery 24V 2x12V Pile shape Triangle 45°
fuel capacity 40L Forward speed L: 0-8m/min H: 0-24m/min
Track tread 2830mm W2 Rear speed L: 0-8m/min H:0-24m/min
Feed port width 2600mm W3 Turning radius 1875mm min

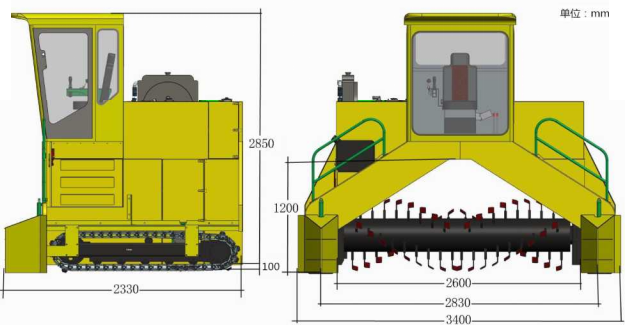

Oversize 3400x2330x2850mm WlxLlxHl Drive mode Hydraulic
Weight 2600kg Without fuel Working capacity 720m3/h Max.
Diameter of roller 497mm With knife

M2600 compost turning machine
m4800 (5)
roller lifting test
Compost turner's CUMMINS ENGINE

Efficient, Energy-saving, and Powerful Engine

Professionally adjusted, specially custom, high-quality brand turbocharged engine. It has strong power, low fuel consumption, and high reliability.

(M2600 and above models equipped with Cummins engine)

Hydraulic system

Hydraulic Control Valve

High-tech content control valve, upgraded and optimized hydraulic system. It has high quality, excellent performance, long service life and low failure rate.



ROLLER of compost turner

Specially Designed Roller

The manganese steel knives on the roller are strong and corrosion-resistant. The machine adopts a scientific spiral design to pulverize the raw materials, disperse and evenly mix and turn by one-thousandth, and oxygenate and cool at the same time. In order to process the organic material in the stack more deeply, the roller also has a lifting function.

Please choose special rollers and knives according to the different characteristics of raw materials.

The function of the compost turner:

1. Stirring function in raw material conditioning.

In compost production, to adjust the carbon-nitrogen ratio, pH, water content, etc. of raw materials, some auxiliary materials must be added. The main raw materials and various auxiliary materials, which are roughly stacked together in proportion, can be mixed evenly by the turning and polishing machine to achieve the purpose of conditioning.​​

2. Adjust the temperature of the raw material pile.

compost raw material

During the operation of the compost turning machine, the raw material pellets are fully contacted and mixed with the air, and a large amount of fresh air can be contained in the material pile, which is helpful for aerobic microorganisms to actively generate fermentation heat, and the temperature of the pile rises; when the temperature is high, the supplement of fresh air can be used. Cool down the stack temperature. A state of alternating medium temperature – high temperature – medium temperature – the high temperature is formed, and various beneficial microorganisms grow and multiply rapidly in the temperature range they are adapted to.

3. Improve the permeability of the raw material windrow pile.

The turning system can process the material into small clumps, so that the viscous and dense material pile becomes fluffy and elastic, forming a suitable porosity.

4. Adjust the moisture of the raw material windrow pile.

The suitable water content of raw material fermentation is around 55%, and the moisture standard of finished organic fertilizer is below 20%. During fermentation, biochemical reactions will generate new water, and the consumption of raw materials by microorganisms will also cause water to lose its carrier and become free. Therefore, with the timely reduction of water during the fertilizer-making process, in addition to the evaporation formed by heat conduction, the turning of the raw material by the turning machine will form mandatory water vapor emission.

5. To realize the special requirements of the composting process.

For example, the crushing of raw materials, giving a certain shape to the raw material pile or realizing quantitative displacement of raw materials, etc.

The process of making compost:

1. Livestock and poultry manure and other materials, organic domestic waste, sludge, etc. are used as fertilizer base materials, pay attention to the carbon-nitrogen ratio (C/N): Since composting materials have different C/N ratios, we need to use The C/N ratio is controlled at the 25~35 that the microorganism likes and the fermentation can proceed smoothly. The C/N ratio of the finished compost is usually 15~25.

characteristics for the composting process

2. After the C/N ratio is adjusted, it can be mixed and stacked. The trick at this point is to adjust the overall moisture content of the compost to 50-60% before starting. If the water content of livestock and poultry manure and other materials, domestic garbage, sludge, etc. is too high, you can add organic matter, relatively dry auxiliary materials that can absorb water, or use the method of backflow to put the dry fertilizer below to form strips, and put the containing Livestock and poultry manure and other materials, domestic garbage, sludge, etc. with a large amount of water are placed in the middle so that the water above can seep to the bottom and then be turned over.

3. Stack the base material in strips on a flat surface. The stack width and height should be equal to the working width and height of the equipment as much as possible, and the specific length needs to be calculated. TAGRM’s turners are equipped with integral hydraulic lifting and drum hydraulic lifting technology, which can adjust themselves to the maximum size of the stack.

windrow pile

4. Sprinkle the fertilizer base materials such as the piled livestock and poultry manure and other materials, domestic garbage, sludge, etc. with biological fermentation inoculants.

5. Use a compost turning machine to evenly mix the straw, livestock and poultry manure and other organic materials, domestic garbage, sludge, (water content should be 50%-60%), fermentation bacteria agent, etc., and it can be deodorized in 3-5 hours. , 16 hours to heat up to 50 degrees (about 122 degrees Fahrenheit), when the temperature reaches 55 degrees (about 131 degrees Fahrenheit), turn the heap again to add oxygen, and then start stirring whenever the temperature of the material reaches 55 degrees to achieve uniform fermentation, The effect of increasing oxygen and cooling, and then repeat this process until it is completely decomposed.

TAGRM compost turner

7. The general fertilization process takes 7-10 days. Due to different climates in different places, it may take 10-15 days for the material to be completely decomposed. high, potassium content increased. Powdered organic fertilizer is made.

Compost turning operation:

1. It can be controlled by both temperature and smell. If the temperature is higher than 70°C (about 158 degrees Fahrenheit), it should be turned over, and if you smell the smell of anaerobic ammonia, it should be turned over.

2. When turning the pile, the inner material should be turned outward, the outer material should be turned inside, the upper material should be turned downward, and the lower material should be turned upward. This ensures that the material is fully and evenly fermented.
