MT5000 Trailed compost turner

Short Description:

 TAGRM Co., Ltd. – officially launched a 180-horsepower, 5-meter ultra-wide traction compost turner, equipped with 108 sets of high-strength alloy blades to achieve efficient material crushing and aeration, redefine the efficiency boundary of large-scale composting, and provide an efficient solution for large-scale composting operations.


Product Detail

Product Tags

As the core equipment of modern organic fertilizer production line, MT5000 traction compost turner fully meets the urgent needs of customers in the field of agricultural waste treatment with its excellent performance.

Technical parameters highlight professional strength:

Power system: equipped with 180 horsepower diesel engine, torque output up to 720N·m, can run stably for a long time, and easily cope with the needs of high-density material operation.

Operation coverage: 5 meters ultra-wide working area, single processing capacity up to 4500m³/hour, 40% higher efficiency than conventional models

Tool configuration: 108 sets of high-strength alloy blades adopt matrix layout, the blade speed can be adjusted in the range of 20-40rpm, to achieve precise control of material crushing and aeration.

Highly cost-effective: The machine has simple structure, convenient maintenance, excellent performance, and is sturdy and durable.

PRODUCT PARAMETERS

MT5000 Tractor-pulled compost turner

Technical Parameters

Specification

Remark

Power

132KW180PS



Output shaft speed

760r/min



Specification

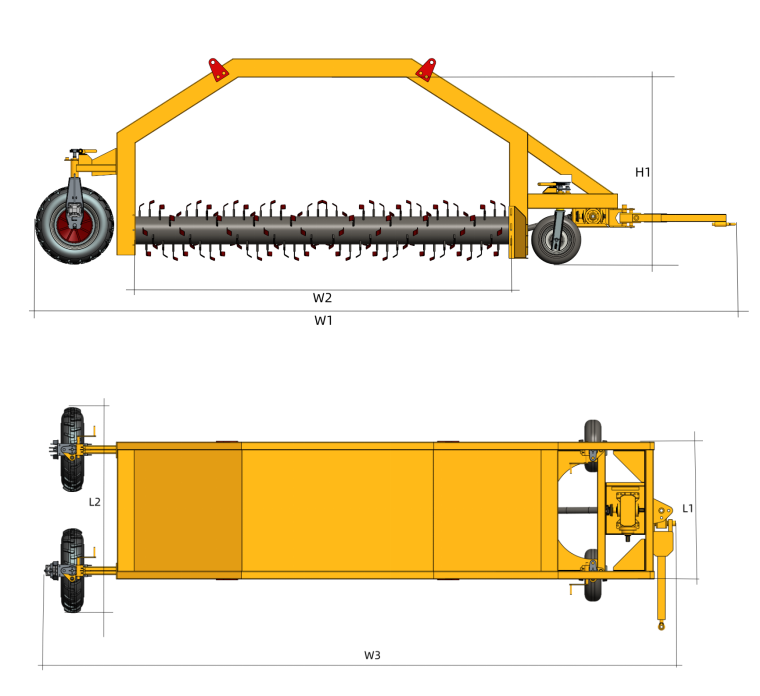

Working dimensions

7900×2560×2500mm

W3×L2×H1

Transport dimensions

9340×1710×2500mm

W1×L1×H1

Roller length

5000mm

W2

Weight

2000Kg



Ground Clearance

100mm



Number of blades

108

Manganese steel

Compost turning parameters



Compost turning width

5000mm



Turning height

2500mm



Turning shape

Approximate triangle



Working speed

2km/h



Maximum throughput

4500m³/h



Material specific gravity

0.5g/cm³



MT5000 compost turner
