Excellent quality Green Waste Compost Windrow Turner - M3600 Roller Organic Compost turner – TAGRM Detail:

As the most versatile windrow turner, the M3600 is equipped with a powerful diesel engine, high-strength cutter head, and most importantly – strict cost control, allowing users to easily Reach a processing capacity of more than 1000 cubic meters per hour.

Product parameter

Model	M3600		Ground clearance	100mm	H2
Rate Power	95KW（128PS）		Ground pressure	0.51Kg/cm²
Rate speed	2200r/min		Working width	3600mm	Max.
Fuel consumption	≤235g/KW·h		Working height	1360mm	Max.
Battery	24V	2×12V	Pile shape	Triangle	42°
fuel capacity	120L		Forward speed	L: 0-8m/min H: 0-24m/min
Crawler tread	3750mm	W2	Rear speed	L: 0-8m/min H:0-24m/min
Crawler width	300mm	Steel with shoe	Feed port width	3600mm
Oversize	4140×2630×3110mm	W3×L2×H1	Turning radius	2600mm	min
Weight	5500kg	Without fuel	Drive mode	Hydraulic
Diameter of roller	823mm	With knife	Working capacity	1250m³/h	Max.

M3600
compost turner
Compost turner's CUMMINS ENGINE

Efficient, Energy-saving and Powerful Engine

Professionally adjusted, specially custom, high quality brand turbocharged engine. It has strong power, low fuel consumption and high reliability.

(M2600 and above models equipped with Cummins engine)

Hydraulic system

Hydraulic Control Valve

High-tech content control valve, upgraded and optimized hydraulic system. It has high quality, excellent performance, long service life and low failure rate.

Integrated operation by the single handle.

ROLLER of compost turner

Specially Designed Roller

Manganese steel cutters on the roller are strong and corrosion resistant. By scientific spiral design, while the machine crushing the raw materials, mixing and turning the raw materials uniformly with one thousandth dispersion, and filling the compost with oxygen and cooling at the same time.

Please choose special rollers and knives according to the different characteristics of raw materials.

M3600 compost turner's back side.

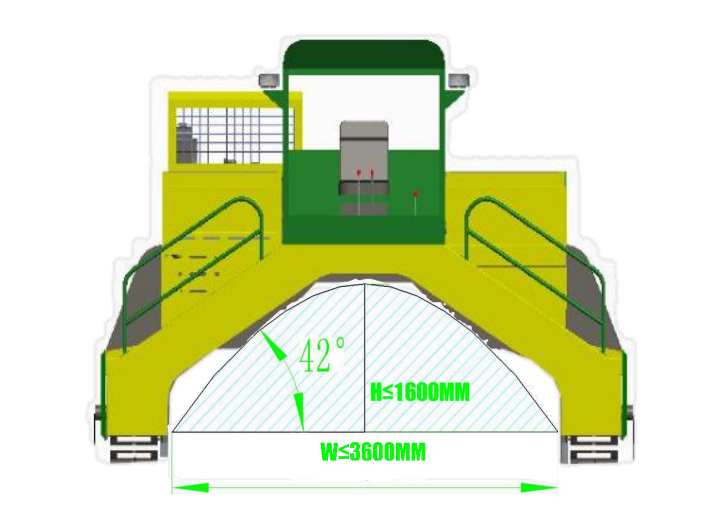

Schematic diagram of stacking size when the machine is working

working instuction

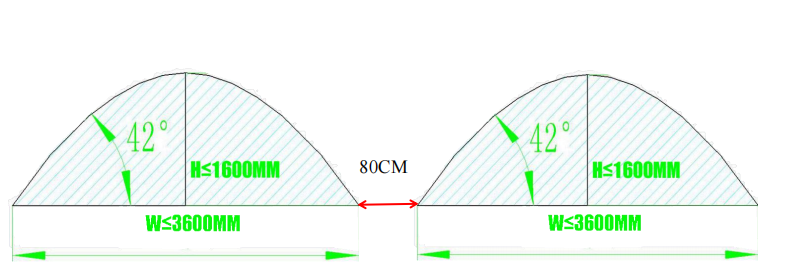

windrow pile sizes
